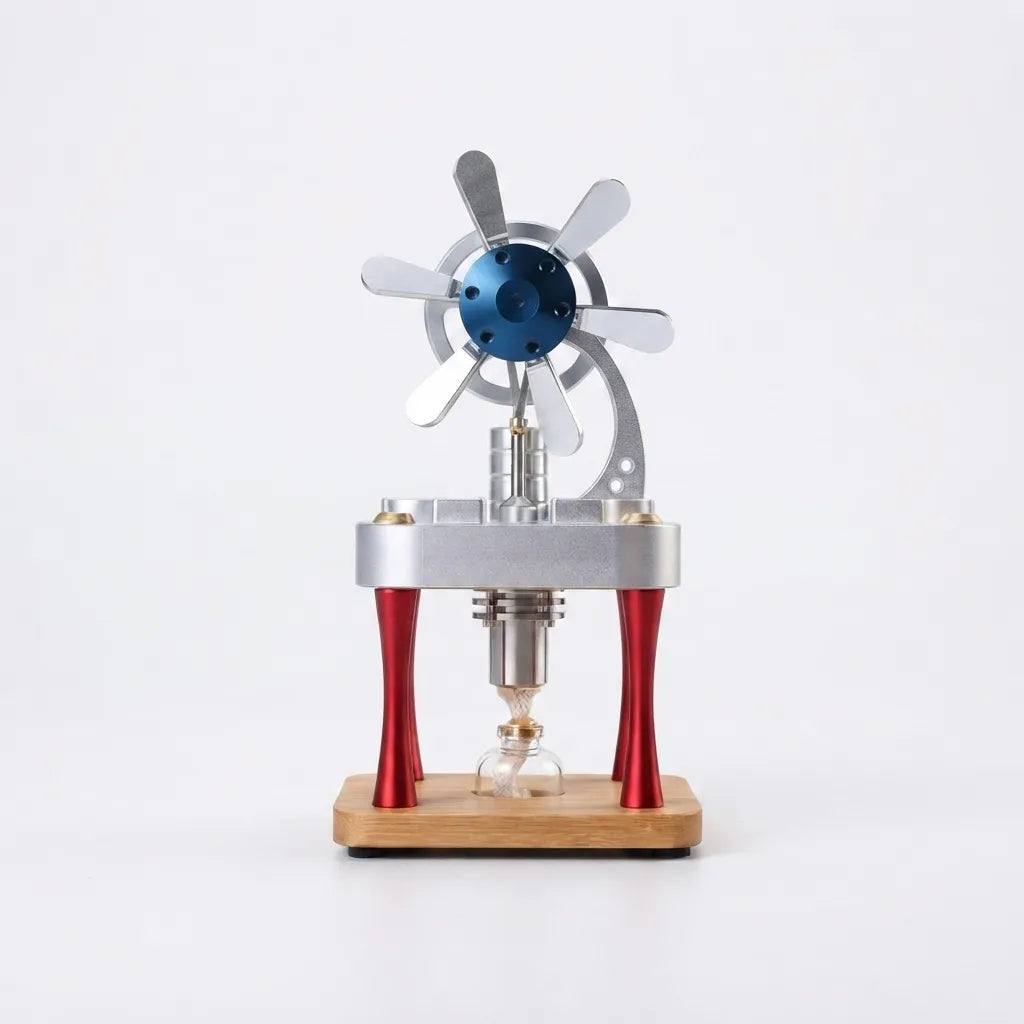

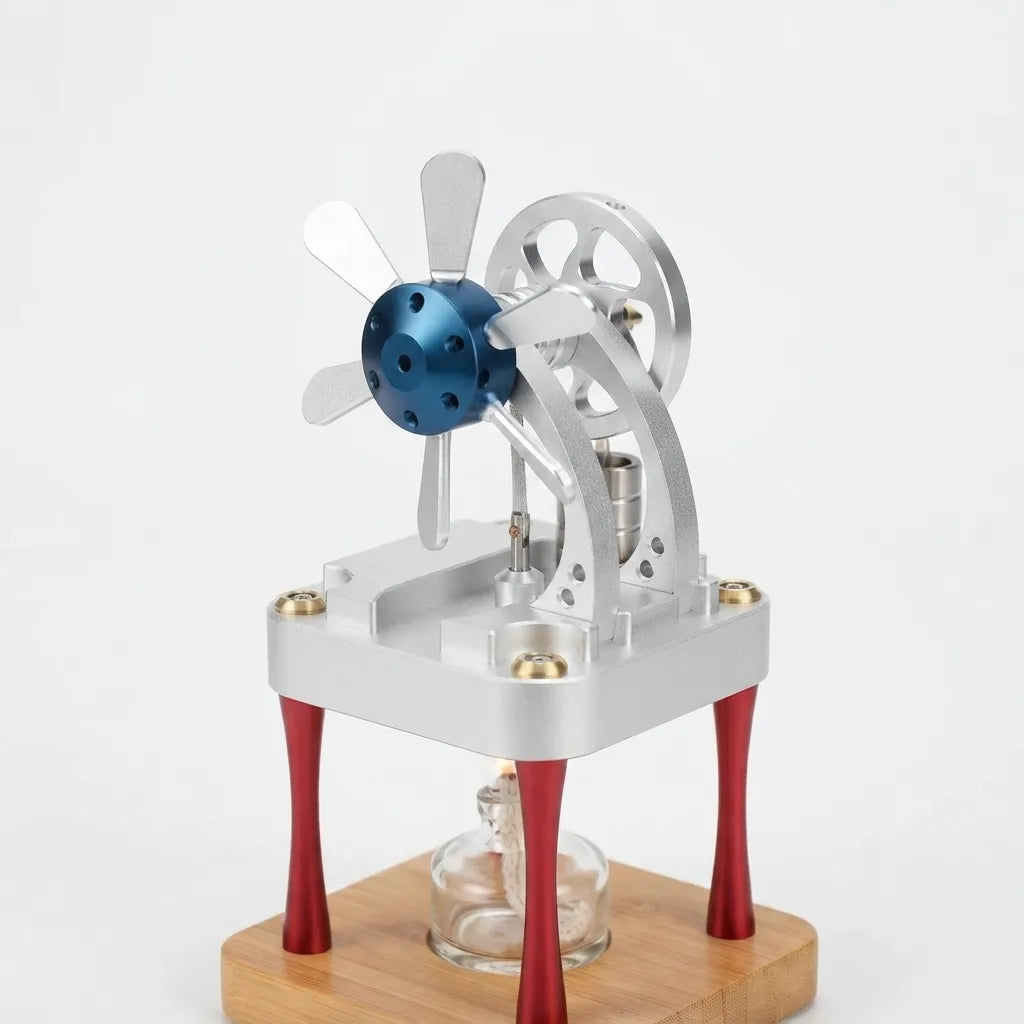

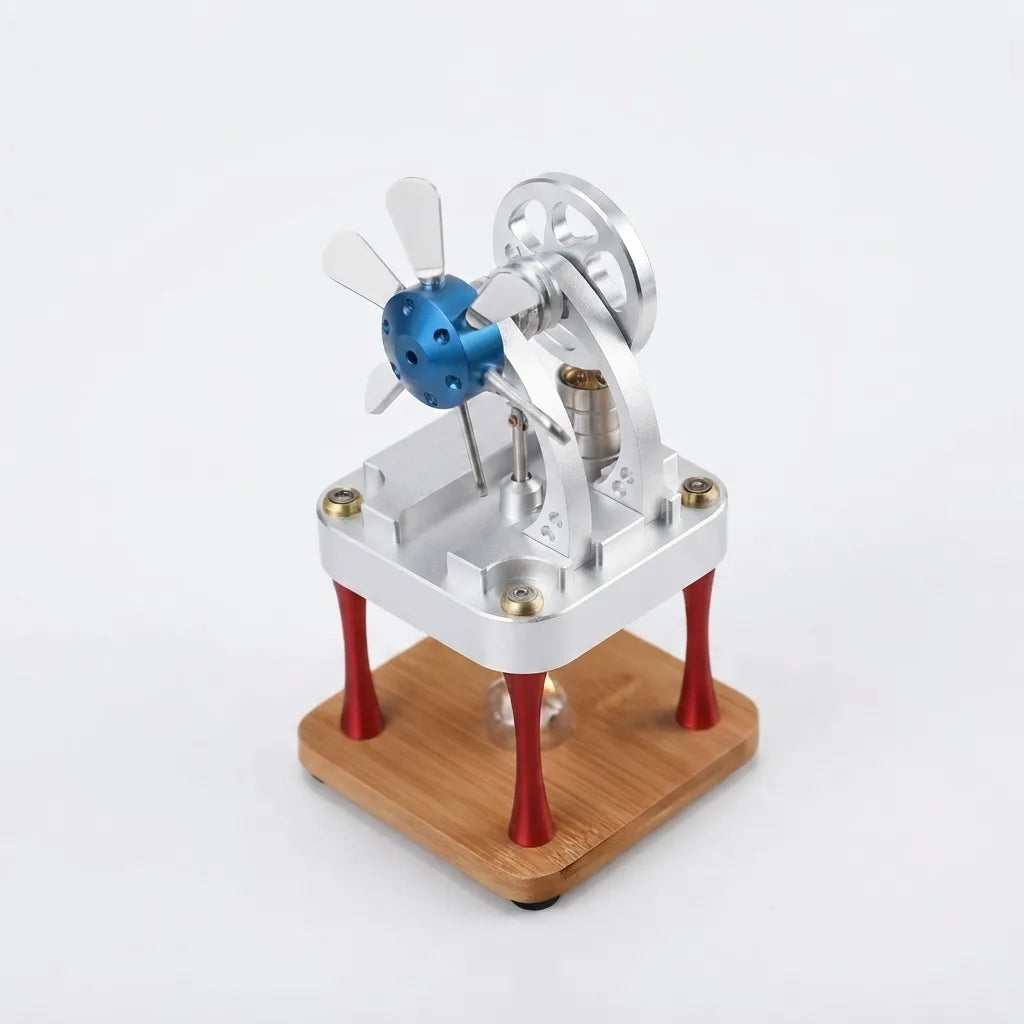

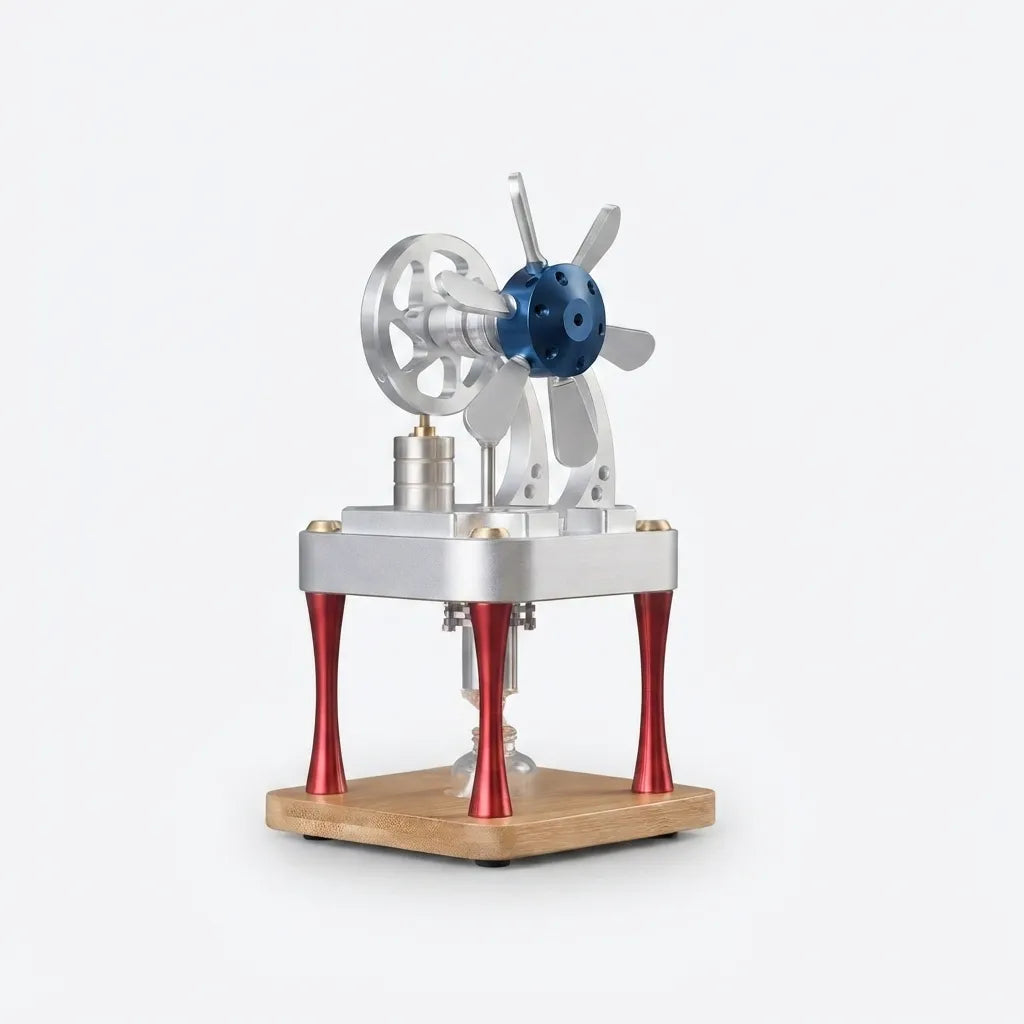

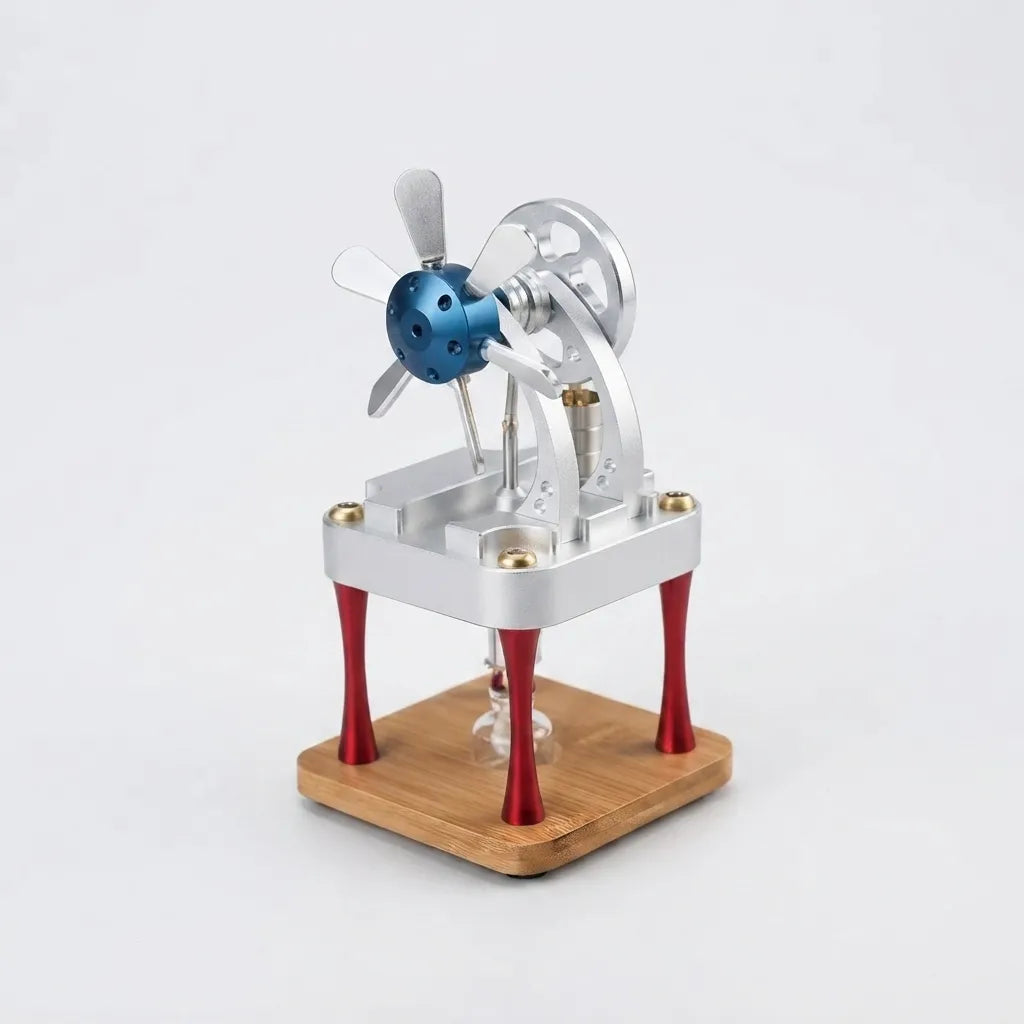

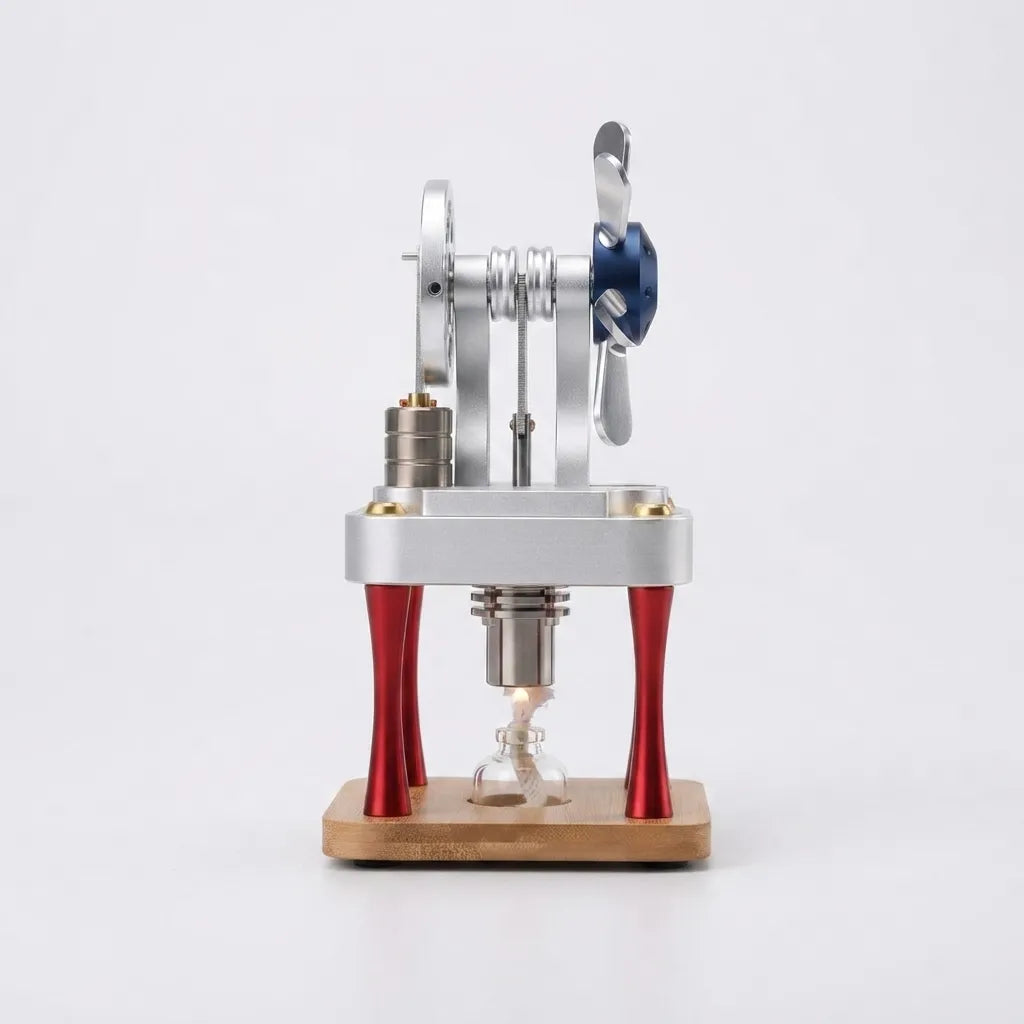

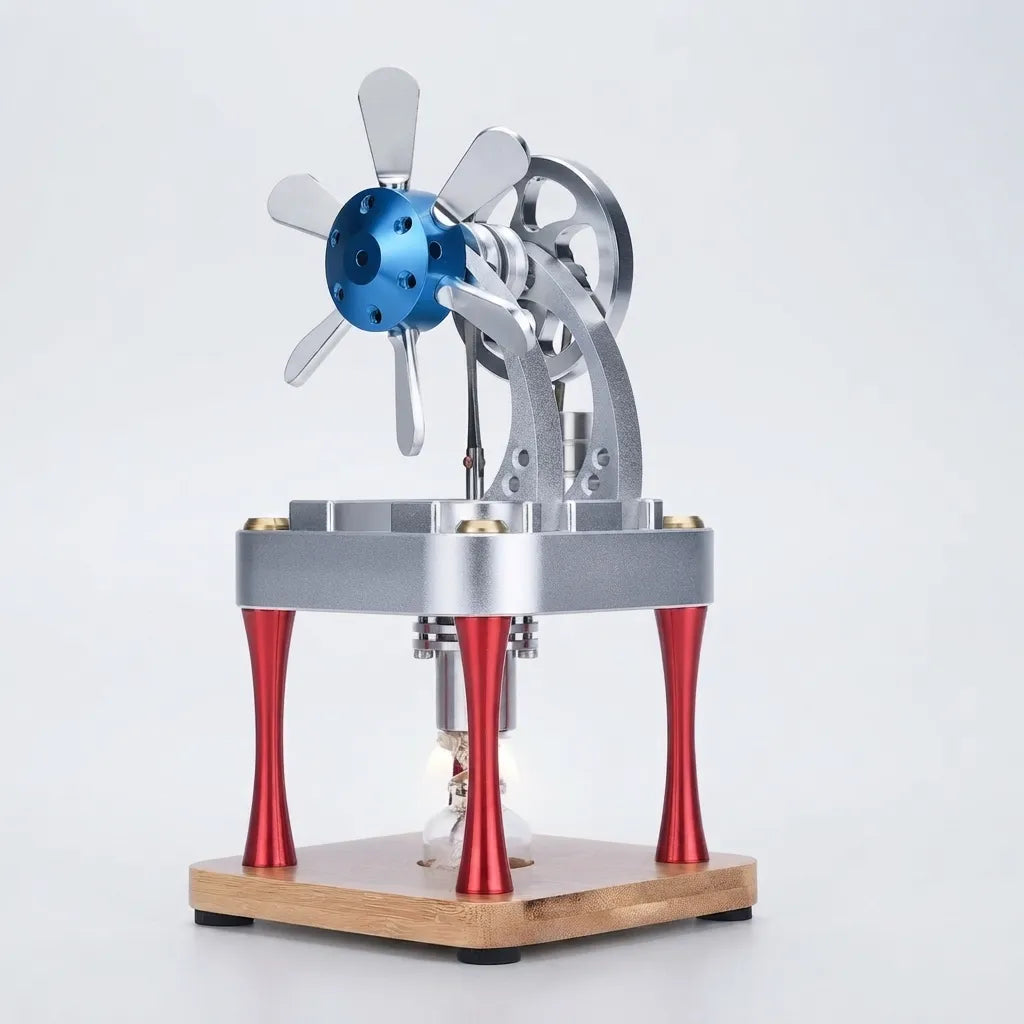

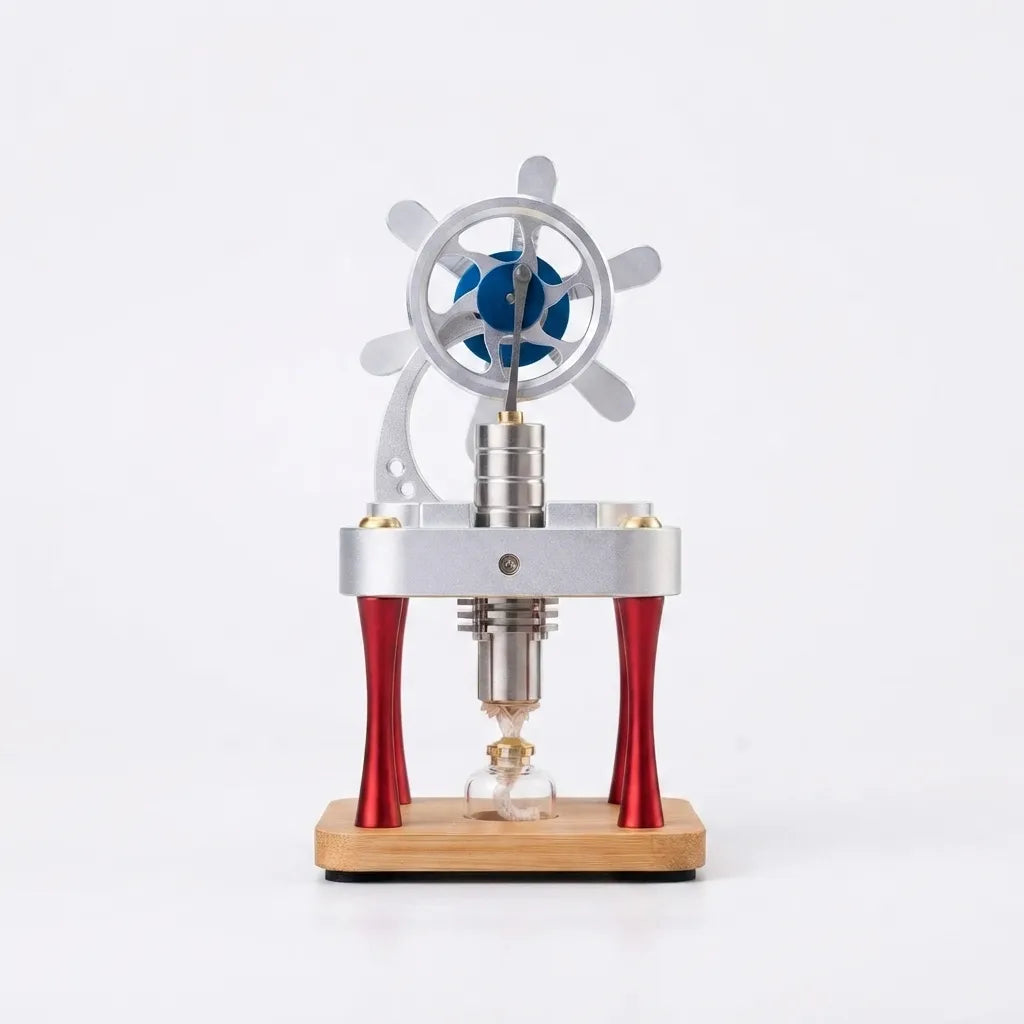

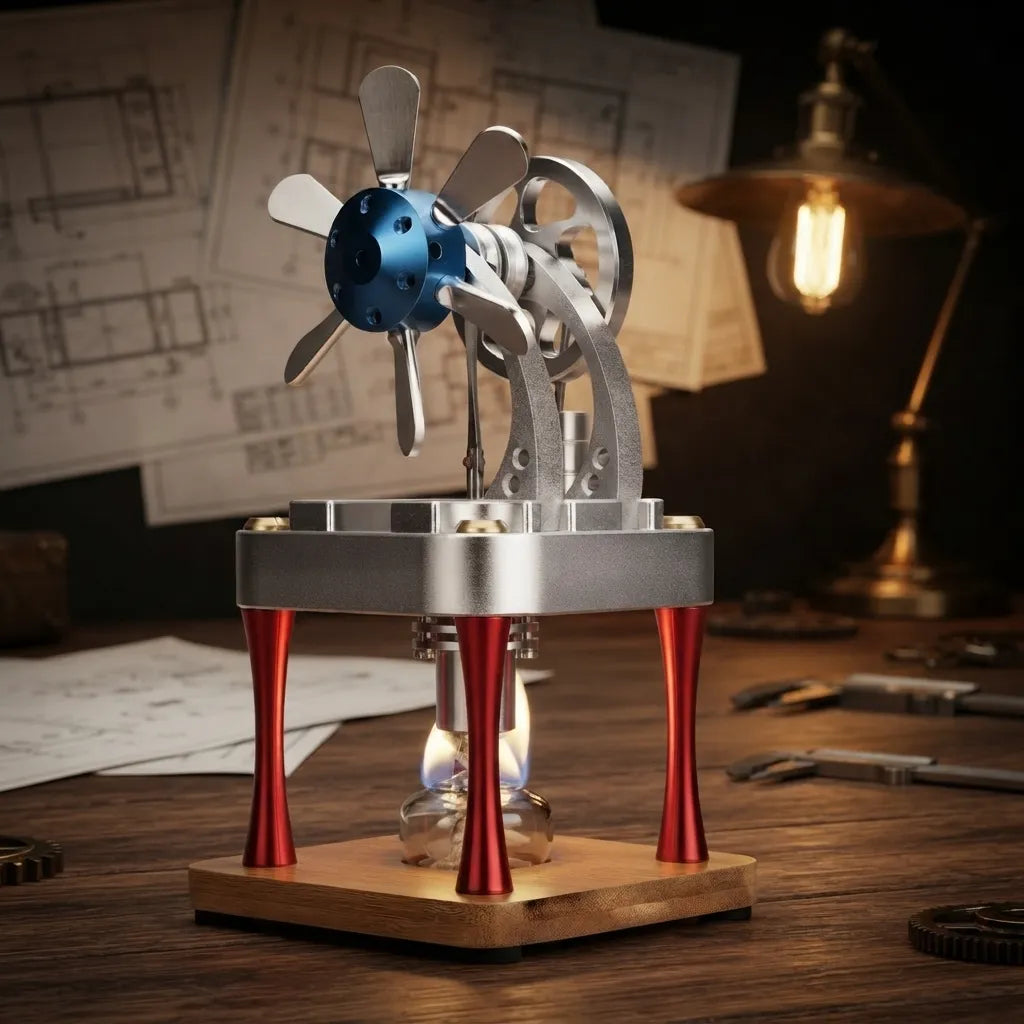

M16-CF Vertical Air-Cooled Stirling Engine with Flywheel Fan

⚙️ Technical Overview:

• Power Source: External heat (95% alcohol lamp required)

• Cooling Method: Active air cooling via integrated 102mm fan

• Materials: 6061 Aluminum, 304 Stainless Steel, SUJ Alloy Steel, Brass, Bamboo

• Assembly Status: 100% Pre-assembled

🔬 Operational Principle & Air Cooling System

The M16-CF operates on the Stirling thermodynamic cycle. It utilizes an external heat source applied to the bottom heating tube. The expansion and contraction of the internal gas drive the brass power piston.

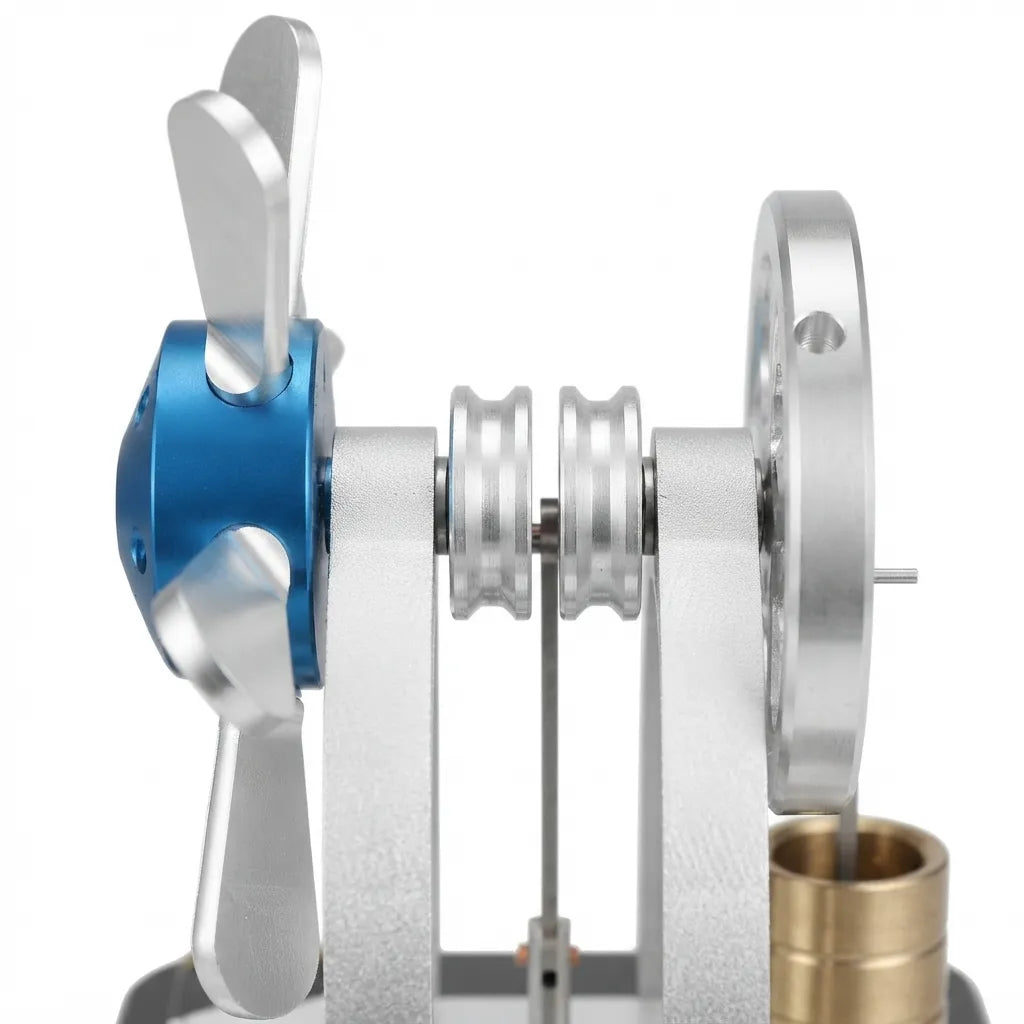

This specific model features a vertical double-mount structure integrated with a 102mm cooling fan. Driven directly by the flywheel's rotation, the fan provides active airflow to the upper cylinder section. This continuous cooling mechanism maintains the necessary temperature differential between the hot and cold ends, ensuring stable operation at high rotational speeds.

🧲 Material Construction

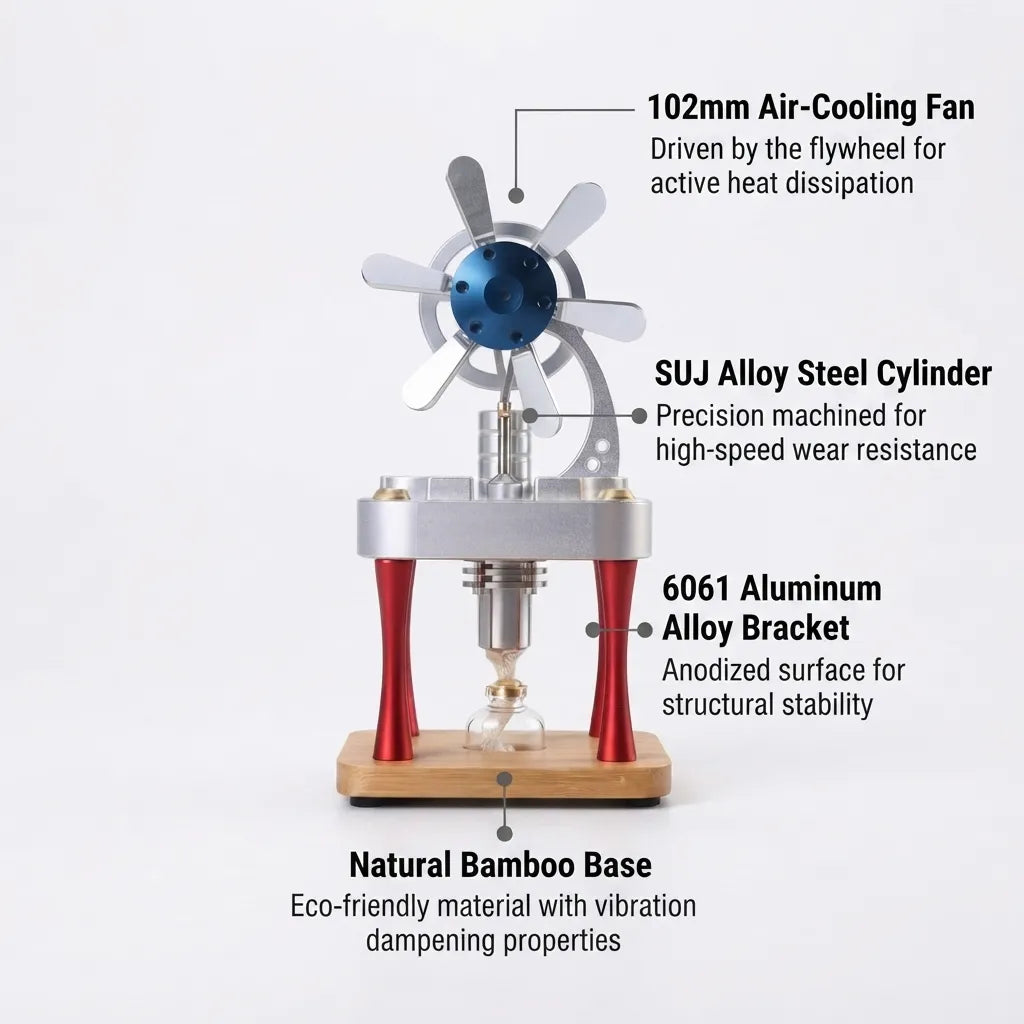

The components of the M16-CF are manufactured using industrial-grade materials to ensure structural integrity and mechanical durability:

• Main Body & Bracket: CNC-machined 6061 aluminum alloy with an anodized surface treatment for oxidation resistance.

• Cylinders & Pistons: The power cylinder is constructed from SUJ alloy steel, paired with a precision brass power piston to minimize friction and wear during continuous operation.

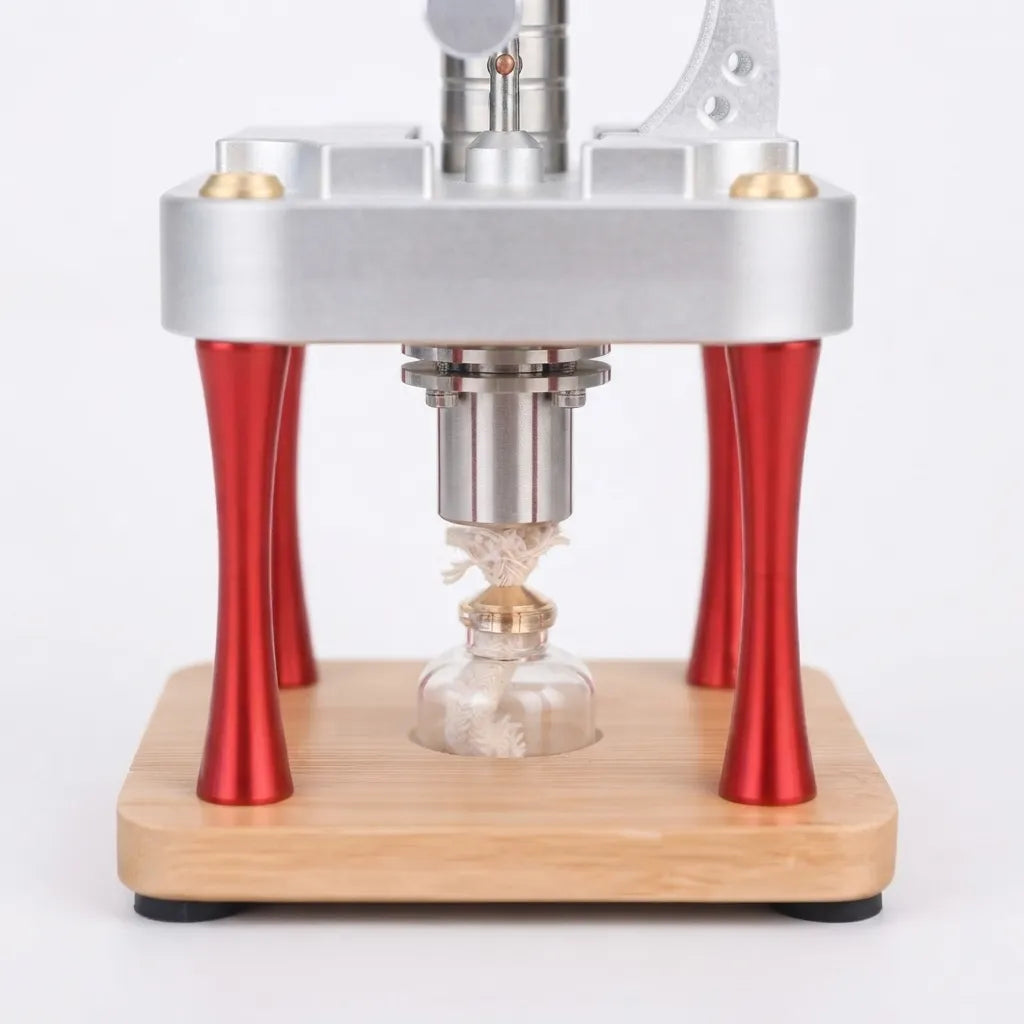

• Heating Tube: Made from high-temperature resistant 304 stainless steel, eliminating the risk of breakage associated with standard glass tubes.

• Bearings: Equipped with F684ZZ precision ball bearings at rotational joints to reduce kinetic energy loss.

• Base: Natural bamboo base provides physical stability and acts as a vibration dampener.

📦 Technical Specifications

• Model: M16-CF

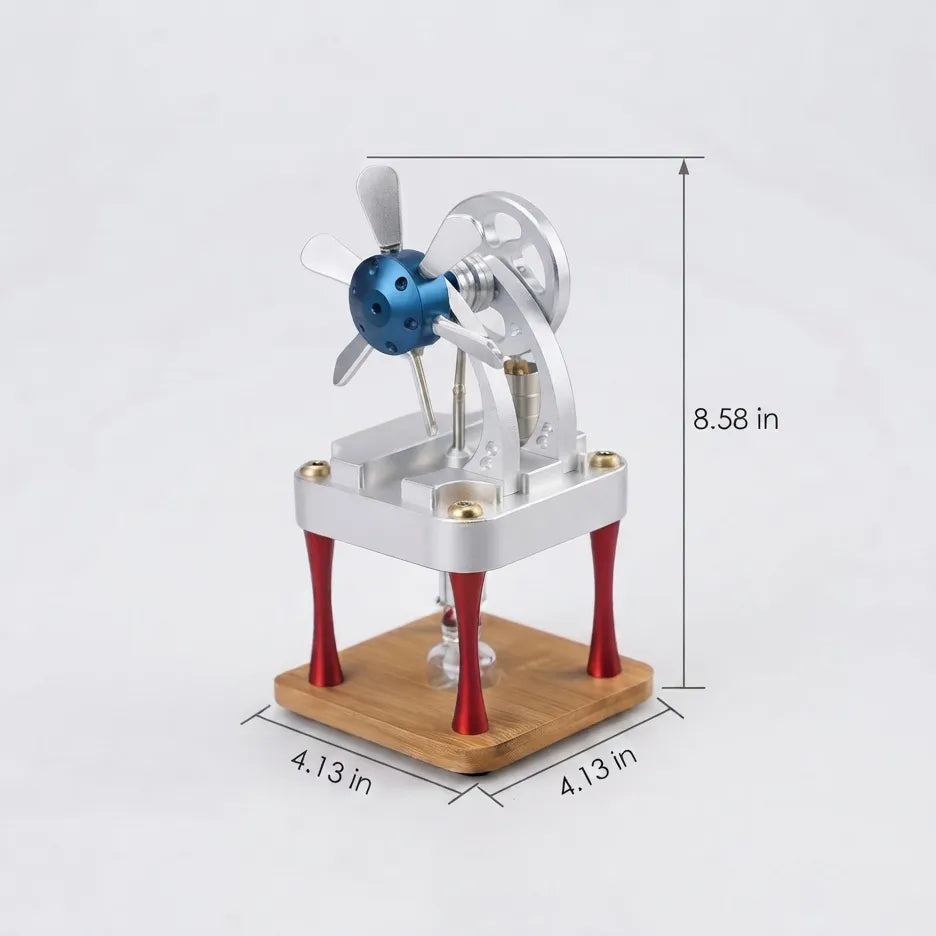

• Dimensions (L x W x H): 10.5 x 10.5 x 21.8 cm (4.13" x 4.13" x 8.58")

• Net Weight: 970g (2.14 lbs)

• Flywheel Diameter: 65 mm

• Fan Diameter: 102 mm

• Piston Diameter / Stroke: 16 mm / 16 mm

• Heating Tube Inner Diameter: 20 mm

• Recommended Age: 14+ (Contains open flame component)

• Package Contents: 1x Assembled M16-CF Engine, 1x Alcohol Lamp (Fuel not included), 1x User Manual

⚠️ Operation & Maintenance Guidelines

To ensure safe operation and prevent mechanical failure, strictly adhere to the following procedures:

1. Strictly No Lubrication: Do not apply liquid oil or lubricants to the cylinder, piston, bearings, or connecting rods. Oil residue will cause the engine to stall.

2. Fuel Requirement: Use only alcohol with a concentration of 95% or higher. Do not fill the lamp beyond 2/3 of its total capacity.

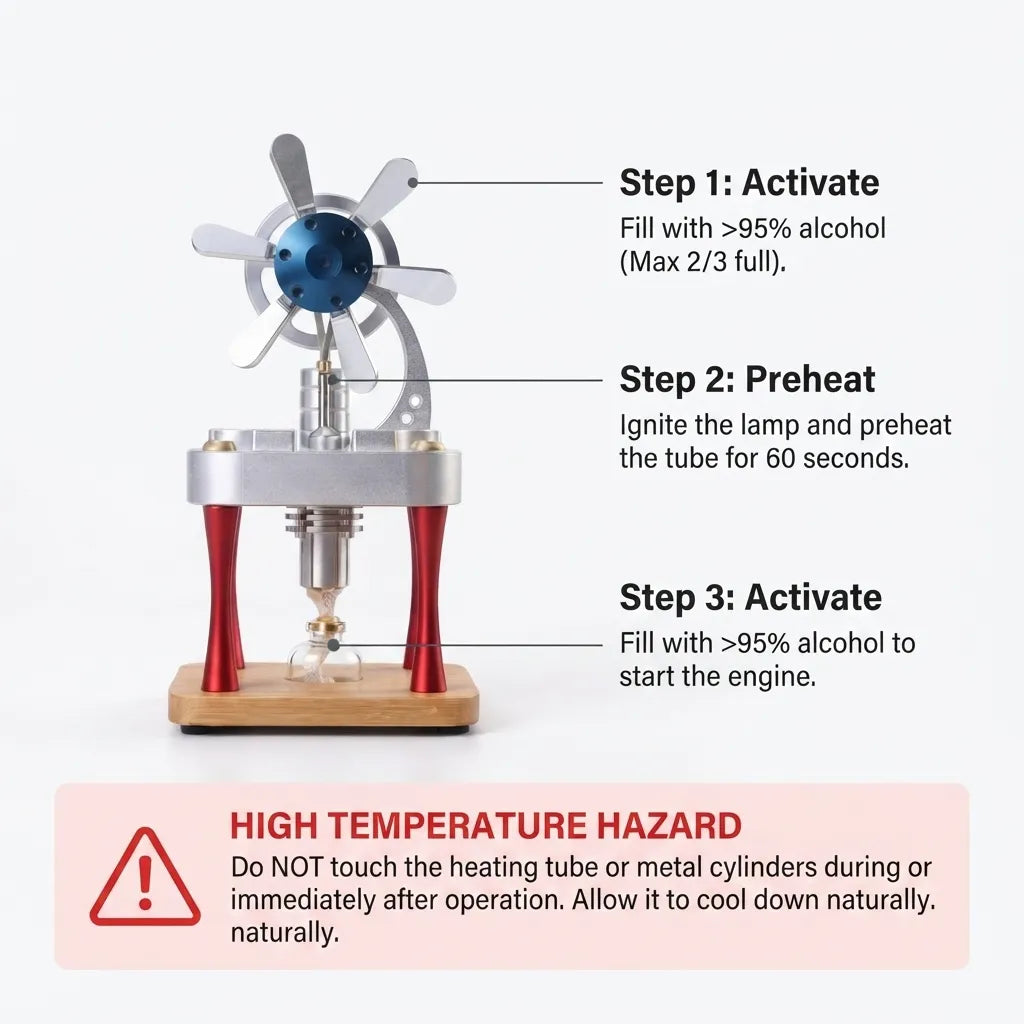

3. Start-up Procedure: Ignite the alcohol lamp and heat the tube for approximately 60 seconds. Manually rotate the flywheel to initiate the cycle.

4. Heat Safety: The heating tube and adjacent metal components will reach extreme temperatures. Do not touch these parts during or immediately after operation.

5. Vibration Management: During high-speed operation, place a damp cloth underneath the bamboo base to increase surface friction and prevent the unit from shifting on smooth desktops.

💬 Frequently Asked Questions (FAQ)

Q: Do I need to assemble the engine upon delivery?
A: No, the M16-CF is delivered fully assembled and calibrated.

Q: Is this model suitable for children?
A: Due to the requirement of an open flame (alcohol lamp) and high operating temperatures, this product is rated for ages 14 and up. Adult supervision is strictly required during operation.

Q: Why does the engine slow down after a few minutes?
A: If the engine slows down, check if the alcohol wick is positioned correctly under the heating tube. Additionally, ensure there is no dust or liquid residue inside the cylinder causing friction.
